BAYCKRC elrs receivers 2.4GHz Nano Antenna RX Low Latency Receiver for FPV kit Micro Drone Racing with Long Remote Range Fly and Low Latency recivers with txco Quadcopter Drone

Price: $17.99
(as of May 19, 2025 02:50:50 UTC – Details)

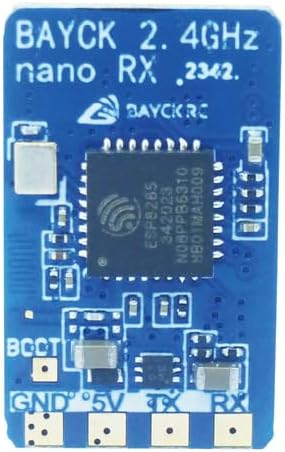

BAYCKRC elrs receivers 2.4GHz nano with high quality Antenna RX Low Latency Receiver for FPV kit Micro Drone Racing with long remote range fly and low latency recivers with txco quadcopter drone Item: ELRS Receiver 2.4G-NANO RX
Frequency: 2.4G FCC(AU,EU Update Firmware)
Chip: ESP8285MCU
RF CHIP: SX1281
Telemetry Power: 20dbm
Maximum Receive Refresh Rate：500HZ
Minimum Receiver refresh rate: 25Hz
Working Voltage: 5V
Weight : 0.6g(receiver only )

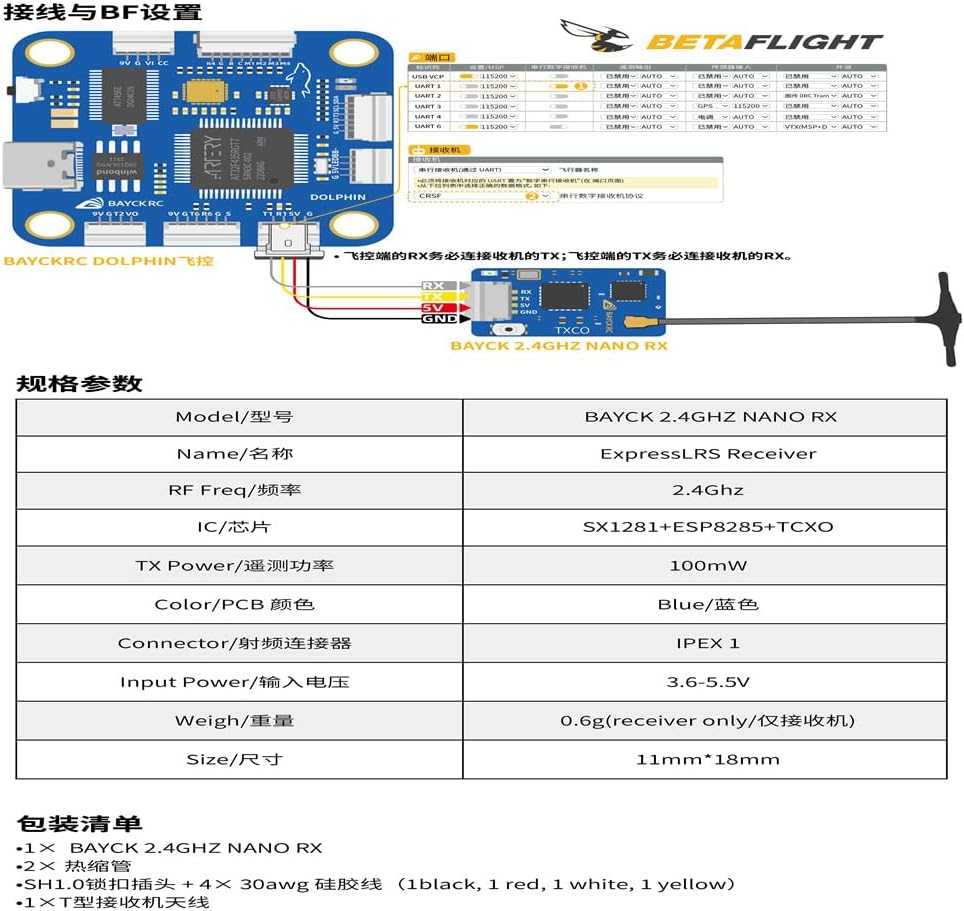

Work Protocol： CRSF（ Betafilght）

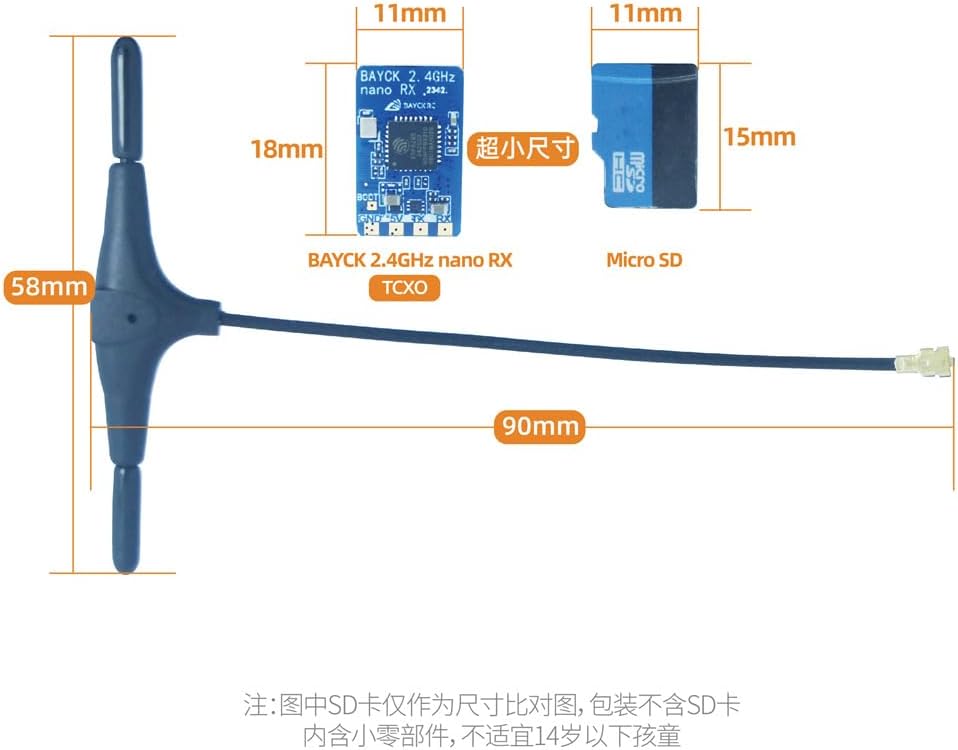

Dimension: 11mmx18mmx3mm

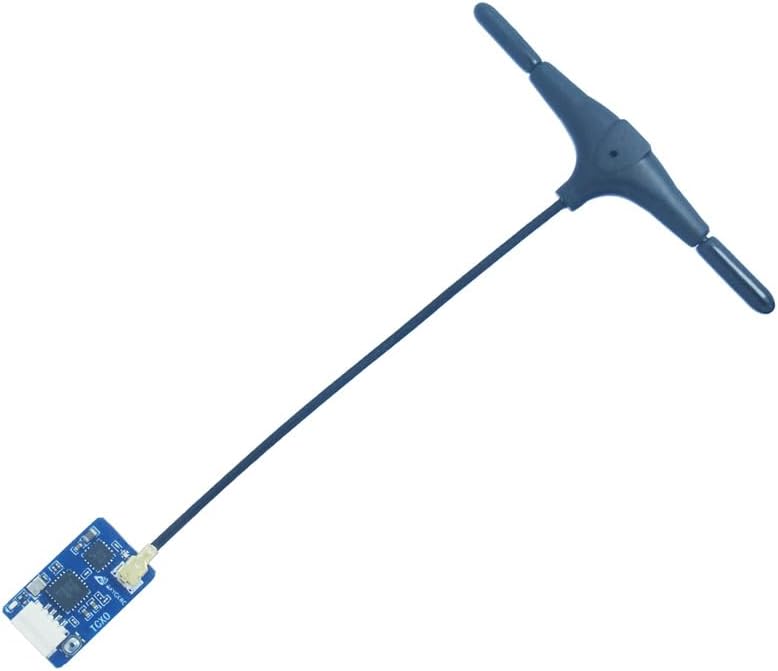

Antenna Connector: IPEX1

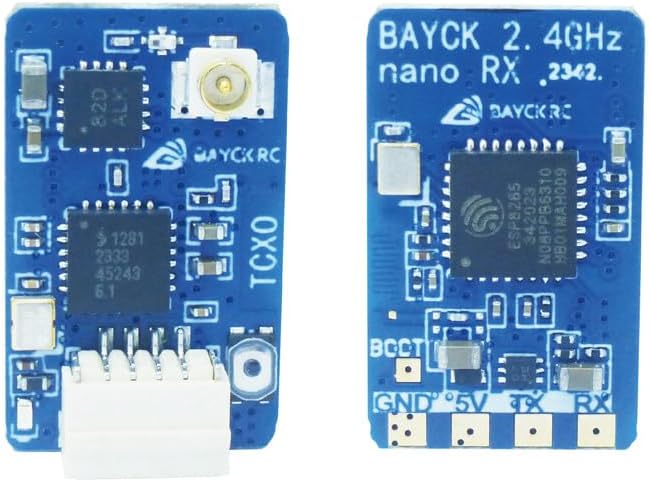

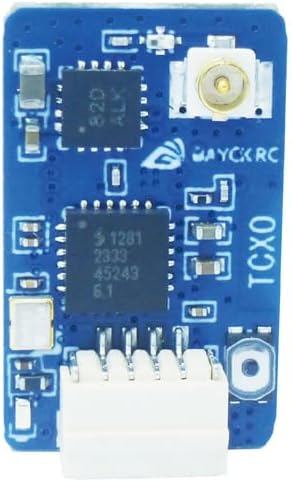

Build-in a TCXO

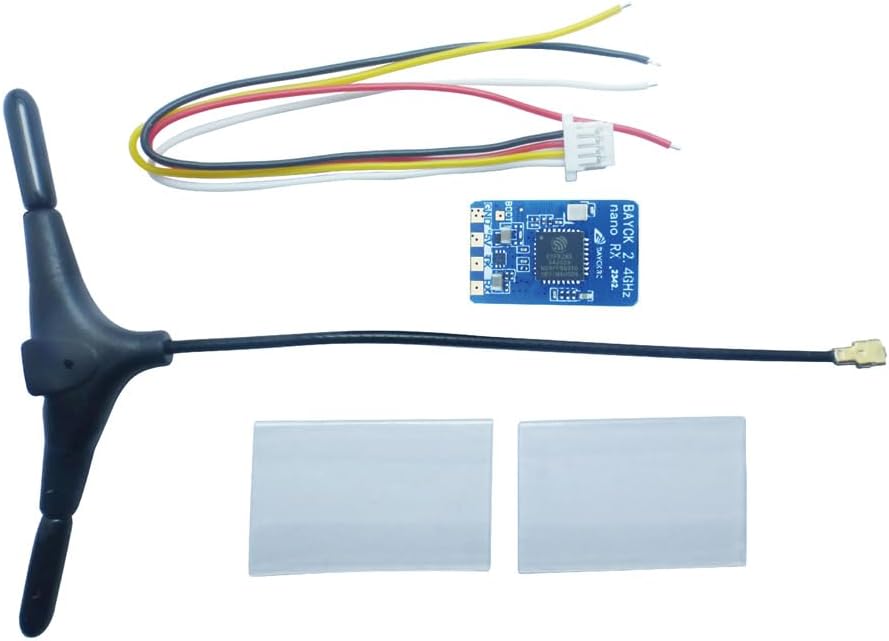

1.0mm*4 Pin Plug

The BAYCKRC elrs receiver 2.4Ghz nano rx is an open-source program Based on ExpressLRS, we have 4types RX modules are Released. All of the receivers use the ESP8285MCU.Your Firmware can be upgraded via WIFI, which is more easier
Lowe Latency and High refresh rate,they are very suitable for FPV racing and long range FPV cruising while being ultra-light and ultra-small which made the installation more easier.
Usually when you just supplied the power or do not turn on the remote control ,the ExpressLRS can be found hot after 60s by default, then the receiver will get in the WIFI automatically, the LED flashing
The BACKY ELRS 2.4G-Nano Receivers is an open-source program based on ExpressLRS,, so any ELRS 2.4Ghz receivers can work with any ELRS 2.4Ghz TX modules , from any manufacture and even DIY ones, this is as long as they have the same binding phase and configuration options( Regulatory Domin, Performance options and Extra Data)
About the Fireware about the Bayck Receiver ELRS Receiver ,please noted compatible for BAYCKRC 2.4Ghz nano , more information ,please contact us , we will reply to you within 24 hours
